Alpine PXA-H700 Car Stereo System User Manual



22-EN
Using Dolby Surround
OFF:
When no speaker is connected
SMALL:
When a speaker that cannot play low
frequencies (80 Hz or less) is connected
LARGE:
When a speaker that can play low frequencies
(80 Hz or less) is connected
*1: It is not possible to set the front speakers to
“OFF”.
*2: If the front speakers are set to “SMALL”, the
rear and center speakers cannot be set to
“LARGE”.
6 Press the SETUP button repeatedly to quit the
setup mode.
NOTES
If the center speaker is turned "OFF", the center
channel's audio signals are added to the audio
signals output from the front speakers.
If you set the speaker response to “OFF”, also set
the speaker setting to “OFF”. (See page 4.)
Perform the setup for all the speakers (“Front”,
“Center”,“Rear” and “Sub. W”). If not, the sound
may not be balanced.
When center is set to subwoofer, the setting is
ineffective even if center is set with this function.
Once the settings are made, we recommend storing
them in the memory. See page 28 for instructions.
Adjusting the speaker levels
Use the PXA-H700’s test tones to make the
volume adjustments of the different speakers.
When levels are equal, a strong sense of
presence can be heard from the different
speakers at the listening position.
NOTE
Avoid stopping, pausing, switching the disc, cueing,
fast-forwarding or switching the audio channel of the
player while making this adjustment. The setting is
canceled if the decode mode is switched.
1 Press the SETUP button.
The setup mode is set.
2 Turn the Rotary encoder to select the “5.1CH
SETUP” mode, then press the ENTER button.
3 Turn the Rotary encoder to select “OUTPUT
LEVEL”, then press the ENTER button.

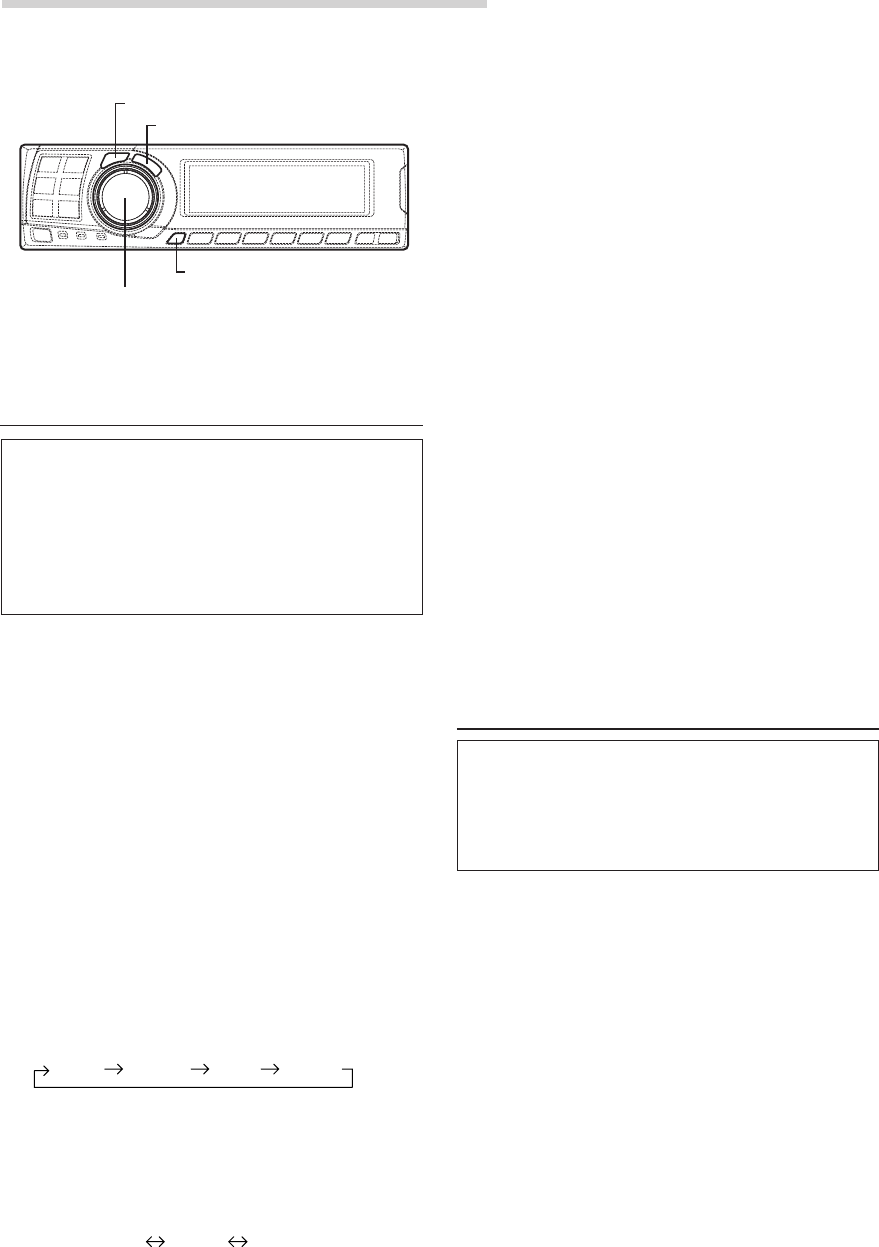

CHANNEL
ENTER
SETUP
Rotary encoder
Speaker setup
The PXA-H700 can be set according to the
playable frequency range of your speakers.
Check the playable frequency range of the
speakers (not including the subwoofer) before
performing this operation to verify whether the
speakers can play low frequencies (of about 80
Hz or less).
NOTE
Avoid stopping, pausing, switching the disc, cueing,
fast-forwarding or switching the audio channel of the
player while making this adjustment. The setting is
canceled if the decode mode is switched.
1 Press the SETUP button.
The setup mode is set.
2 Turn the Rotary encoder to select the “5.1CH
SETUP” mode, then press the ENTER button.
3 Turn the Rotary encoder to select the
“SPEAKER SETUP”, then press the ENTER
button.
4 Press the CHANNEL button to select the
speaker, then press the ENTER button.
5 Turn the Rotary encoder to select the speaker
property, then press the ENTER button.
Repeat steps 4 and 5 to set the various items.
(Subwoofer is only ON/OFF.)
Front Center Rear Sub. W
OFF SMALL LARGE
*
1
*
2
