38-EN
Installation and Connections
NOTE
Please observe the following when using Fiber Optic Cable.
• Do not coil the Fiber Optic Cable smaller than a 30mm radius.
• Do not place anything on top of the Fiber Optic Cable.

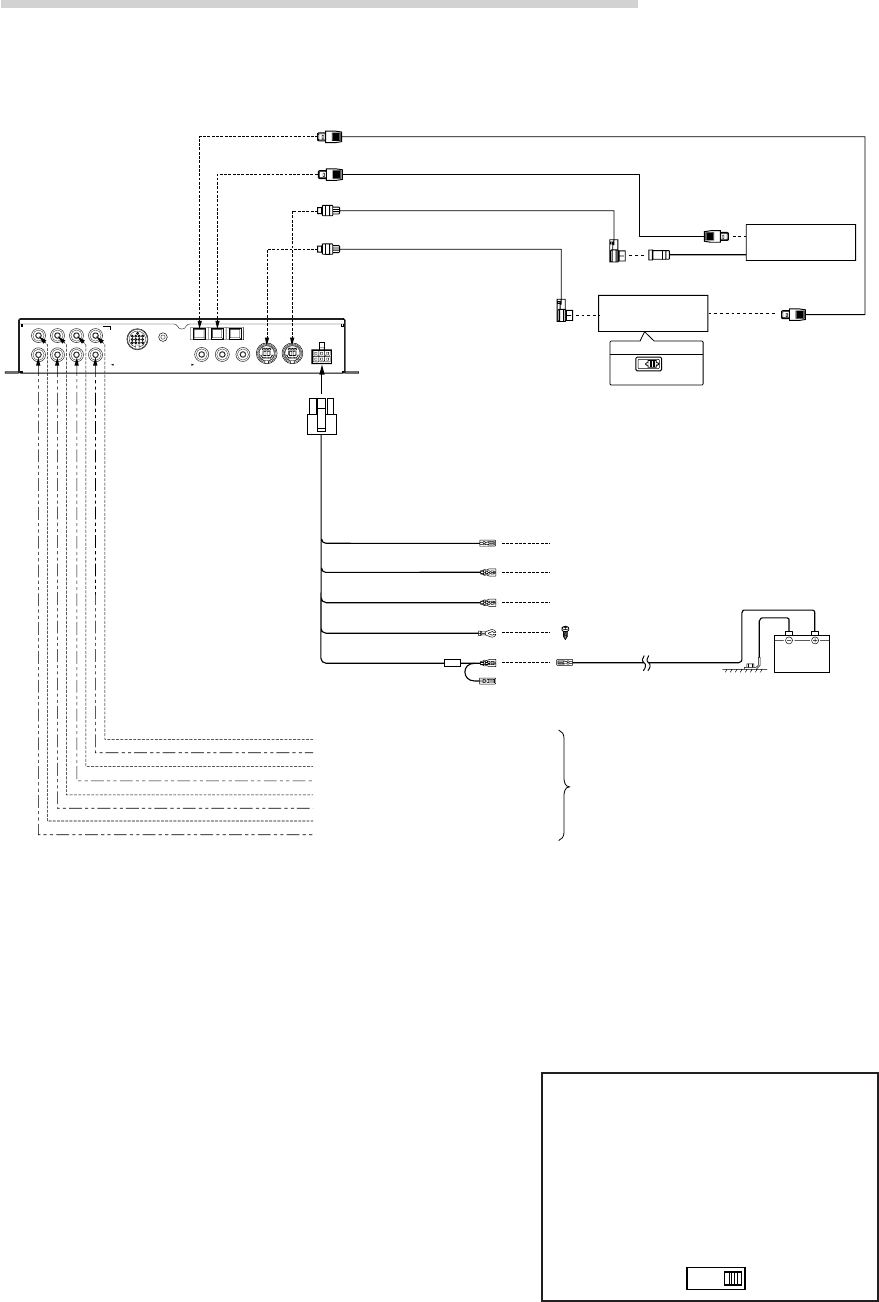

• PXA-H700 + Ai-NET Compatible Head Unit + CD Changer +
External Amplifier
Battery
Blue/White
Blue/White
White/green
Not used in this system
Not used in this system
To External Amplifier Remote ON Cable
Connect to a metal part of
chassis body with a screw.
Remote OUT Cable
Remote ON Cable
Guide Control Cable
Grounding Cable
Battery Power Cable
Rear Output (L)
Rear Output (R)
Ai-NET Cable (Included with CD Changer)
Ai-NET Cable (Included)
Ai-NET Compatible
Head Unit
EQ
/
DIV
System Switch
Fiber Optic Cable (Sold Separately)
Ai-NET Compatible
CD Changer
★★★
Fiber Optic Cable (Sold Separately)
★★
★
Front 1 Output (L)
Front 1 Output (R)
Front 2 Output (L)
Front 2 Output (R)
Center Output or Subwoofer Output (L)*
Subwoofer Output or Subwoofer Output (R)*
To External Amplifier
(L)
(R)
FRONT 1
(FULL RANGE
/TWEETER)
FRONT 2 REAR
SUBWOOFER
CONTROL UNIT
MIC
GUIDEINPUTOUTPUT (L) (R)
Ai–NET IN
ANALOG 2
ANALOG 1
CHANGER IN
ANALOG 3
POWER SUPPLY
CHG
DIGITAL 2
CD
DIGITAL 1
DVD
DIGITAL 3
CENTER
SELECTABLE
SUBWOOFER
NOTES
★ When connecting a Optical Digital CD
Changer
★★ Used for connection to an optical
digital compatible head unit.
★★★ When connecting a Optical Digital CD
Changer, change the Digital/Analog
switch of the CD Changer to "2"
(Digital Output)
12
* When the subwoofer is connected to the
center speaker output jack, it becomes
subwoofer output (L or R).
In this case, change the setting of the center
speaker to subwoofer in “Setting the speakers”
(page 4).
