Installation and Connections
Installing the Tuner
When mounting with Velcro fasteners
When mounting the tuner with the Velcro fasteners,
be sure to choose a flat location.
Do not hang the unit from the bottom of the
dashboard or rear deck with the Velcro fasteners.
1 Placing the Velcro fasteners onto the Tuner.
Peel off the protective paper from the adhesive
side of the Velcro fasteners.
Attach two pieces of the Velcro fasteners (rough
textured) onto the bottom of the Tuner.
2 Attach two pieces of the Velcro fasteners (soft
textured) onto the mounting location such as
under the front passenger's seat etc. Mount the
Tuner aligning the Velcro Fasteners.
When mounting with Screws
When mounting the tuner with the screws, be sure to
choose a flat location.
When making holes, be careful not to scratch any
pipes or wires.

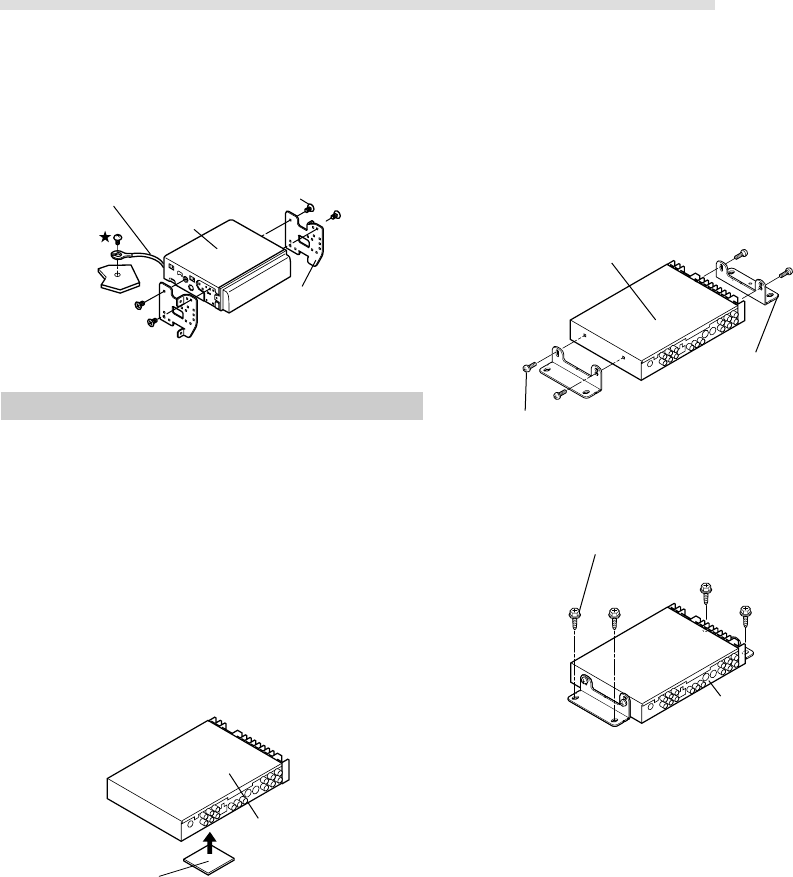

1 Connect the bracket to both the flanks of the
tuner with the supplied pan screws (M4x8).
2 Install the tuner on the floor with the supplied
hexagon flange-head screws (M5x15).
<JAPANESE CAR>
To install using the vehicle's genuine bracket.
IVA-C801/
CVA-1006
Screws
(M5x6)
(Included)
Mounting
Bracket
Ground Lead
Hexagon flange-head screws
(M5x15) (Included)
Tuner
Tuner
Velcro Fastener
Tuner
Bracket
(Included)
Pan screws (M4x8) (Included)
