1. When the rear of the main unit has been se-
cured with the method shown in Figure 6
unfasten the special screw.
2. Remove the outer escutcheon.
3. Insert the hook plate between the spring and
the universal mounting bracket, fit tab
B
of
the spring into hole of the hook plate,
then pull the main unit out by the hook plate.
(Insert both the right and left edges of the
hook plate.) (Figure 9)
Note: Keep the hook plate. You cannot remove the
main unit without disengaging the hook plate.
6. REMOVING THE MAIN UNIT
This unit is designed for fixed installation in the
dashboard.
If the vehicle is equipped with a factory-installed
radio, install the main unit with the parts and
screws marked (∗). (Figure 8)
If the vehicle is not equipped with a factory-in-
stalled radio, obtain an installation kit to install
the main unit in the following procedure.

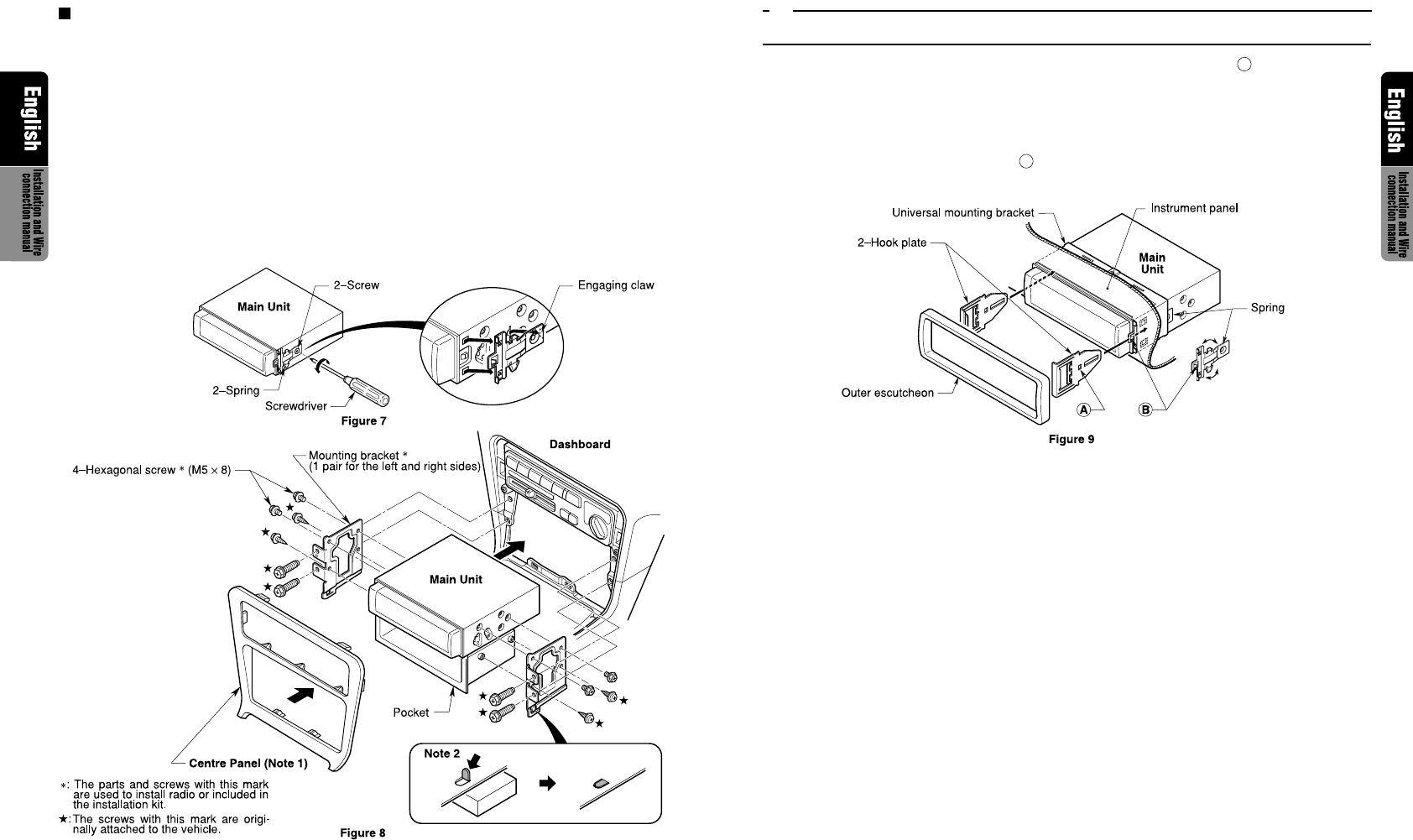

1. Remove the screws from both side of the
main unit. Then, at either side, lift the leaf
spring until the engaging claws are released
from the holes, and slide the spring to the
direction of arrow to remove it. Repeat the
■ Fixed Mount (TOYOTA, NISSAN and other ISO/DIN equipped vehicles)
same for the other side to remove the springs
from the both sides. (Figure 7)
2. Secure the mounting brackets to the chassis
as shown in Figure 8. Holes are pre-tapped
for TOYOTA and NISSAN vehicles; modifi-
cation, such as drilling new holes, of the
mounting brackets may be required for other
models.
3. Wire as shown in Section 8.
4. Secure the unit in the dashboard, and then
reassemble the dashboard and the centre
panel.
Note 1: In some cases, the centre panel may re-
quire some modification (trimming, filling,
etc.).
Note 2: If a hook on the installation bracket inter-
feres with the unit, bend and flatten it with
a nipper or a similar tool.
