3. NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold).
Names of Buttons
1 POWER button
FUNC (Function) button
2 SEARCH button
VOLUME button
3 PLAY/PAUSE button
4 Information Panel
5 PS (Preset scan)/AS (Auto store) button
SCN (Scan) button
6 DCP RELEASE lever
7 WIDE button
RPT (Repeat) button
8 TV/VTR button
RDM (Random) button
9 Z-EHCR (Z-enhancer) button
0 ISR button
! OPEN button
M. LOCK(Monitor lock) button
@ DISP (Display) button
MONI ON/OFF button
# PRESET buttons (1 to 6)
DIRECT buttons (1 to 6)
$ MUTE button
% BAND button
¥ Color LCD display
& A-M (Audio-Mode) button
* ADJ (Adjust) button
( TITLE button
) VISUAL button
¡ JOYSTICK
™ Remote Control Infrared Sensor
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.

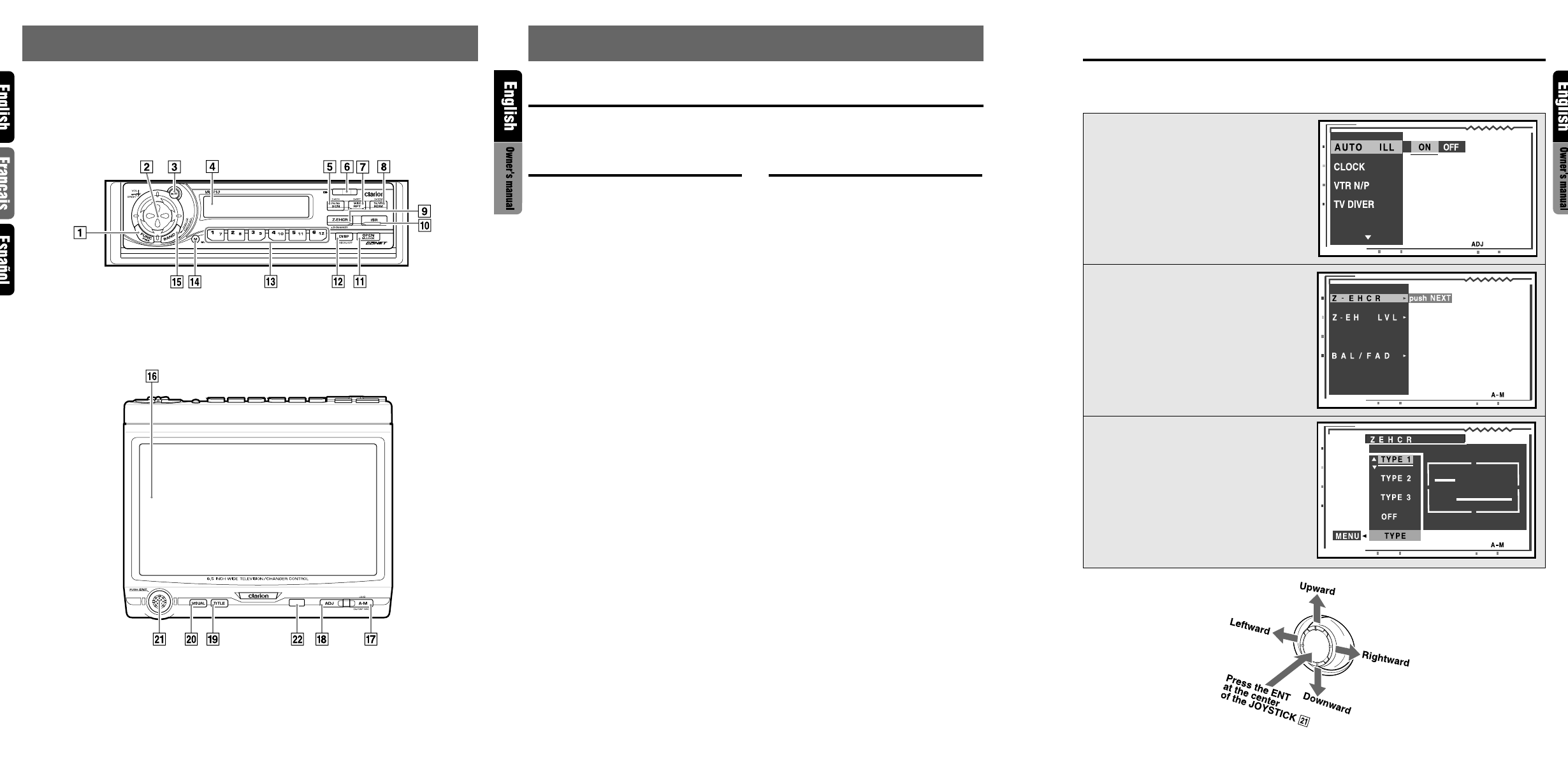

CONTROLS / COMMANDES / CONTROLES
Main unit / Unité principale / Unidad principal
With the Display closed / Avec l`afficheur fermé / Con el visualisador cerrado
With the Display open / Avec l`afficheur ouvert / Con el visualisador abierto
JOYSTICK Operation
With the display closed With the display open
Note:
• Many settings/procedures have to be performed by using the JOYSTICK
¡
. Be sure to read this chapter
in order to operate it properly.
● Selecting an item in the menu
Select an item displayed in the menu by oper-
ating the JOYSTICK ¡ upward or downward.
● Setting an option for the selected item
When the setting options for an item are listed
on the right of the display, you can choose the
desired option by operating the JOYSTICK ¡
leftward or rightward. Then, press the center of
the JOYSTICK ¡ to set your choice.
● When “push NEXT” is displayed next to
the menu item
1. Press the ENT at the center of the JOY-
STICK ¡ to select the item and show the
setting display for this item.
2. Operate the JOYSTICK ¡ upward or down-
ward to select the desired setting option,
then press ENT at the center of the JOY-
STICK ¡ to set your choice.
● Returning to the previous mode
Select the item “MENU” by operating the JOY-
STICK ¡ leftward or rightward, then press the
ENT at the center of the JOYSTICK ¡.
2. CONTROLS / COMMANDES / CONTROLES
