VRX610 1716 VRX610
Basic Operations
•
If a title has been input, it is shown in the SUB dis-
play. If no title has been input, “---------” appears in
the display. To input a title, refer to the subsection
“Entering titles” in “Other Functions” section.
• Some special characters of the title, will not be
displayed on the Information Panel of the DCP. In
this case, those characters will only be left blank.
Showing a mode display
When the panel is open:
Press the TITLE button ( to show the Title List
display. In the Title List display, the titles of items
stored in the PRESET buttons # 1 to 6 are listed.
∗ For detailed information, refer to the section “Title
list play”.
Opening and turning the display
Notes:
• Do not place any object on the open display.
• Do not drop any object on the movable part.
• Do not expose the display to shocks.
1. Press the OPEN button ! to open the Color
LCD display ¥.
∗ If the Color LCD display ¥ is left horizontally
in the open position for 10 seconds or longer,
it is automatically drawn in.
2. Turn the Color LCD display ¥ upwards to a
good view angle.
When the monitor is turned upwards, a pic-
ture appears in the display. The Information
Panel 4 display disappears.
CAUTION
Do not turn the display unless it is completely
open.
When adjusting the angle of the display be
careful no to let your fingers get caught by
the panel or instrument panel of the vehicle.
3. To store the Color LCD display ¥ in the source
unit, turn it to the horizontal position until a
click is heard.
Turning on and off the monitor
Pressing the DISP button @ turns the monitor
on and off.
∗ When a button is pressed or during security moni-
toring, the monitor-off mode is canceled.
Mute
Each time you press the MUTE button $, mute
is turned on and off.
“MUTE” appears when mute is turned on.
Setting the Z-enhancer
This unit comes with 3 types of sound tone effect
stored in memory. Select the one you prefer.
∗ The factory default setting is “Z-EHCR OFF”.
When a Z-enhancer comes on (1-3), “Z-EHCR”
appears in the display.
•“Z-EHCR 1” (Z-Enhancer 1):
Setting emphasizing bass.
•“Z-EHCR 2” (Z-Enhancer 2):
Setting emphasizing treble.
•“Z-EHCR 3” (Z-Enhancer 3):
Setting emphasizing bass and
treble.
•“Z-EHCR OFF” (Z-Enhancer off):
Neither bass nor treble are empha-
sized by the Z-enhancer.
Note:
• Incapable of operation when connecting DSP
(DPH7500z/7700z).

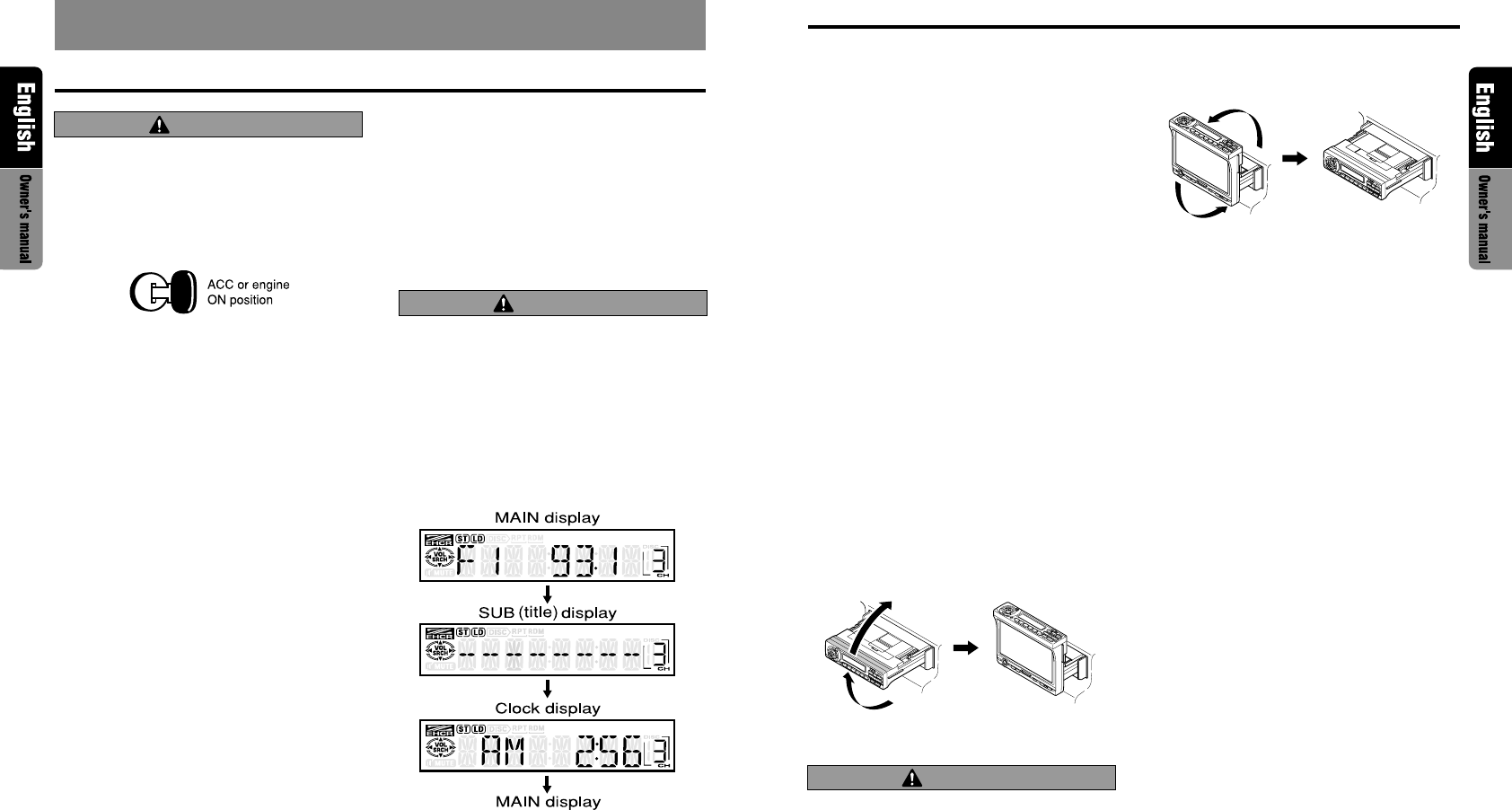

8. OPERATIONS
Basic Operations
Note: Be sure to read this chapter referring to the front diagrams of
chapter “2. CONTROLS” on page 5 (unfold).
CAUTION
When the unit is turned on, starting and stop-
ping the engine with its volume raised to the
maximum level may harm your hearings. Be
careful about adjusting the volume.
Note:
• Use this unit after starting the engine.
Turning on and off the power
Note:
• Be careful about using this unit for a long time with-
out running the engine. If you drain the car’s bat-
tery too far, you may not be able to start the en-
gine and this can reduce the service life of the
battery.
1. Press the POWER button 1.
2. The illumination and display on the unit light
up. The unit automatically remembers its last
operation mode and will automatically switch
to display that mode.
3.
Press and hold the POWER button 1 for 1 sec-
ond or longer to turn off the power for the unit.
Note:
• About the “SYSTEM CHECK”
The confirmation of connected equipment must be
performed for this unit only when the wiring con-
nection is complete and power is turned on to the
unit first. When the power is supplied, “SYSTEM ”
and “PUSH PWR” appear alternately in the dis-
play. Press the POWER button
1
, the system
check starts inside the unit. When “COMPLETE”
appears, press once again the POWER button
1
.
Selecting a mode
1. Press the FUNC button 1 to change the mode
of operation.
2. Each time you press the FUNC button 1, the
mode of operation changes in the following
order:
Radio mode ➜ CD changer mode ➜ MD
changer mode ➜ TV mode ➜ Radio mode...
∗ External equipment not connected with CeNET
is not selected.
Adjusting the volume
Operate the VOLUME button 2 in the direction
of the arrows
ww
ww
w (up) or
zz
zz
z (down) to adjust the
volume;
ww
ww
w: Increases the volume.
zz
zz
z: Decreases the volume.
∗ The volume level indicated in the display is in a
range from 0 (minimum) to 33 (maximum).
CAUTION
While driving, keep the volume at a level at
which external sounds can be heard.
Switching the display
When the panel is closed:
Press the DISP button
@
to select the desired dis-
play.
Each time you press the DISP button @, the dis-
play switches in the following order:
Notes:
• Once selected, the preferred display becomes the
default display. When a function adjustment such
as volume is made, the display momentarily
switches to that function’s display, then returns
back to the preferred display several seconds af-
ter the adjustment.
