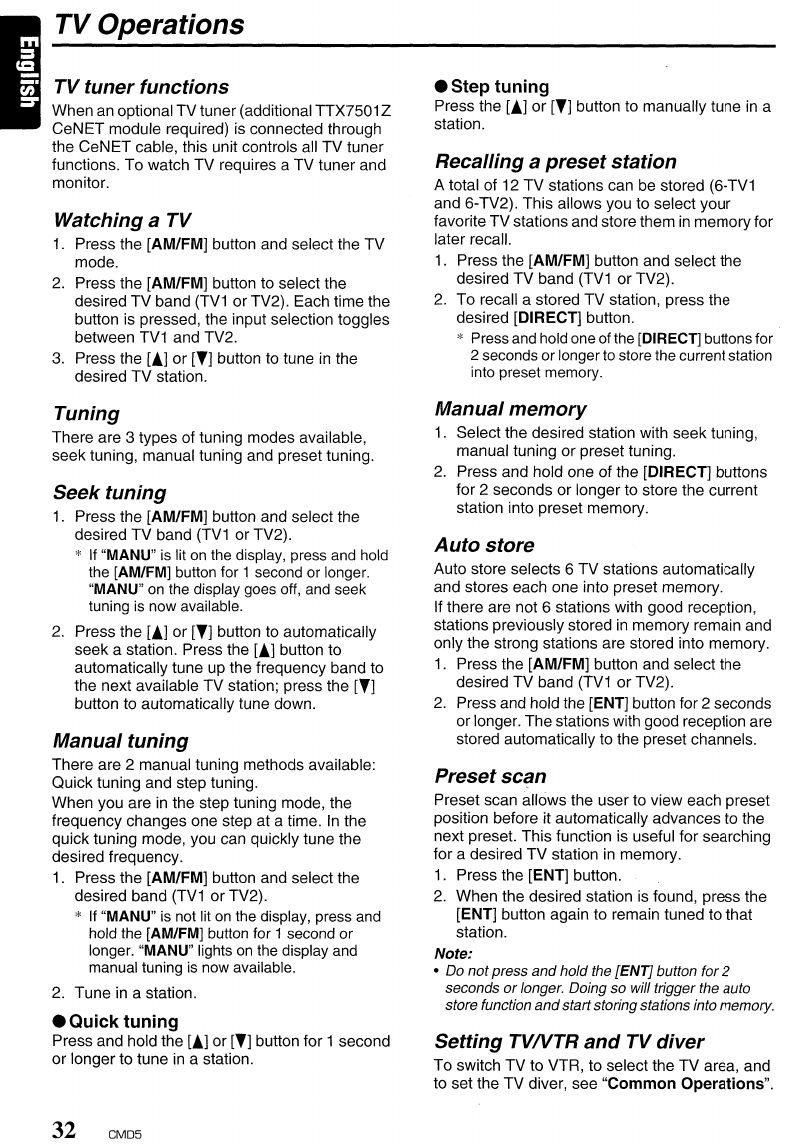

TV Operations
TV
tuner
functions
When
an
optional TVtuner (additional TTX7501 Z
CeNET module required)
is
connected through
the CeNET cable, this unit controls all TV tuner
functions. To watch TV requires a TV tuner and
monitor.
Watching a TV
1.
Press the [AM/FM] button and select the TV
mode.
2.
Press the [AM/FM] button to select the
desired TV band
(TV1
or TV2). Each time the
button
is
pressed, the input selection toggles
between
TV1
and TV2.
3.
Press the
[!]
or
[l]
button to tune
in
the
desired TV station.
Tuning
There are 3 types of tuning modes available,
seek tuning, manual tuning and preset tuning.
Seek
tuning
1.
Press the [AM/FM] button and select the
desired TV band
(TV1
or TV2).
* If "MANU" is lit on the display, press and hold
the [AM/FM] button for 1 second or longer.
"MANU" on the display goes off, and seek
tuning is now available.
2.
Press the
[!]
or
[l]
button to automatically
seek a station. Press the
[!]
button to
automatically tune up the frequency band to
the next available TV station; press the
[l]
button to automatically tune down.
Manual
tuning
There are 2 manual tuning methods available:
Quick tuning and step tuning.
When you are
in
the step tuning mode, the
frequency changes one step at a time.
In
the
quick tuning mode, you can quickly tune the
desired frequency.
1.
Press the [AM/FM] button and select the
desired band
(TV1
or TV2).
* If
"MANU"
is not lit on the display, press and
hold the [AM/FM] button for 1 second
or
longer. "MANU" lights on the display and
manual tuning is now available.
2.
Tune
in
a station.
•
Quick
tuning
Press and hold the
[!]
or
[l]
button for 1 second
or longer to tune
in
a station.
• Step
tuning
Press the
[!]
or
[l]
button to manually tune
in
a
station.
Recalling a
preset
station
A total of 12 TV stations can be stored (6-
TV1
and 6-TV2). This allows you to select your
favorite TV stations and store them
in
memoryfor
later recall.
1.
Press the [AM/FM] button and select the
desired TV band
(TV1
or TV2).
2.
To recall a stored TV station, press the
desired [DIRECT] button.
* Pressand hold oneofthe [DIRECT] buttonsfor
2 seconds
or
longerto store the currentstation
into preset memory.
Manual
memory
1.
Select the desired station with seek tuning,
manual tuning or preset tuning.
2.
Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store the current
station into preset memory.
Auto
store
Auto store selects 6 TV stations automatically
and stores each one into preset memory.
If there are not 6 stations with good reception,
stations previously stored
in
memory remain and
only the strong stations are stored into memory.
1.
Press the [AM/FM] button and select the
desired TV band
(TV1
or TV2).
2.
Press and hold the [ENT] button for 2 seconds
or longer. The stations with good reception are
stored automatically to the preset channels.
Preset scan
Preset scan allows the user to view each preset
position before it automatically advances to the
next preset. This function is useful for searching
for a desired TV station
in
memory.
1.
Press the [ENT] button.
2.
When the desired station
is
found, press the
[ENT] button again to remain tuned to that
station.
Note:
• Do
not
press
and
hold
the
[ENT]
button for 2
seconds
or
longer. Doingso will trigger the auto
store function
and
start
storingstations into
memory
.
Setting TVNTR
and
TV
diver
To switch TV to VTR, to select the TV area, and
to set the TV diver, see
"Common Operations".
