4. Operation
Using the Display Management Menu
7. To generate a test pattern from the Fiberlink transmitter, press {Transmitter} to
display the
Transmitter Pattern Generation Menu.

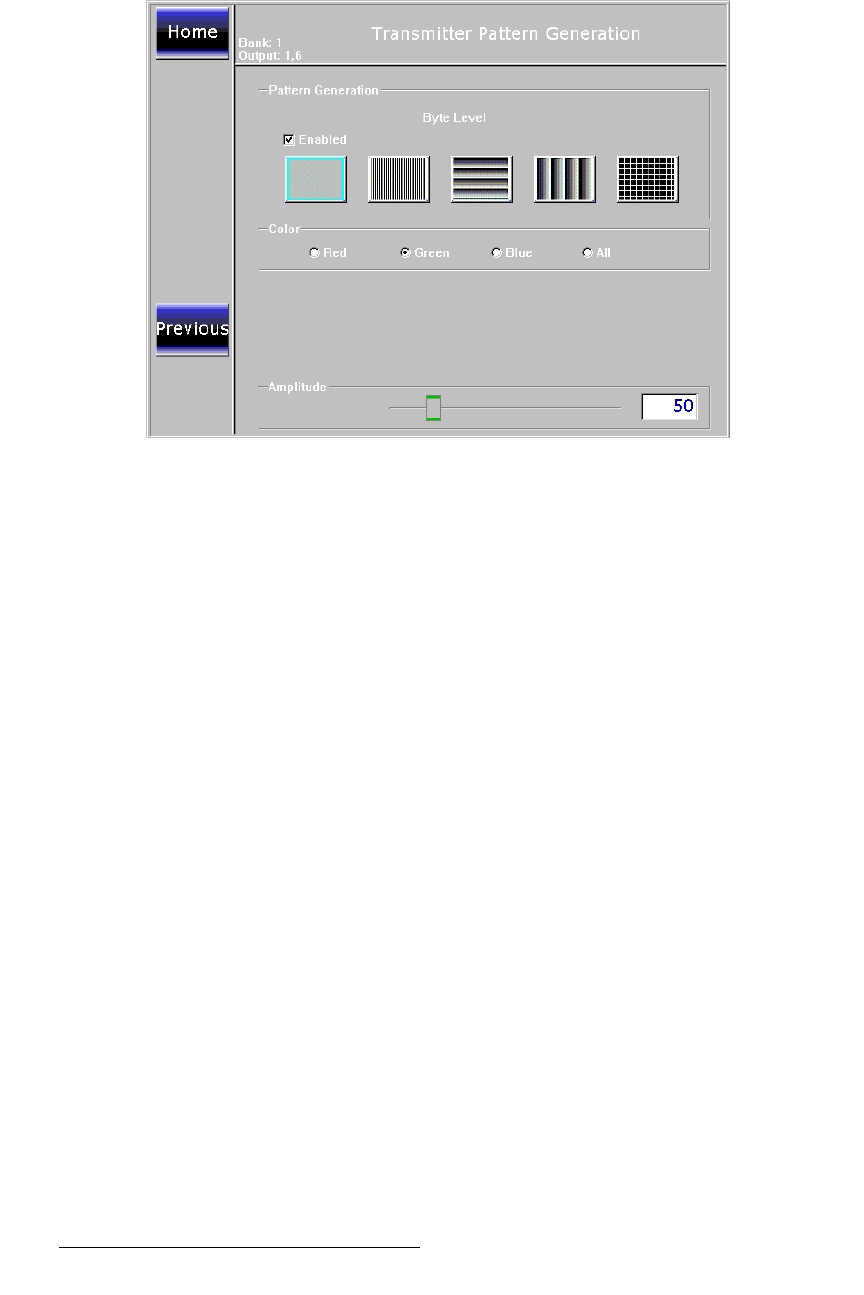

Figure 4-69. Transmitter Pattern Generation Menu
a. In the Pattern Generation section, check the Enabled check box to
enable transmitter test patterns.
b. Select a test pattern. Each pattern has additional options:
• When
Byte Level is enabled:
– Select the desired color:
Red, Green, Blue or All.
– Adjust the
Amplitude with the slider.
• When
Multiburst is selected:
– Select the desired color:
Red, Green, Blue or All.
– Select the horizontal motion:
Still, Left or Right.
– Adjust the
Burst Type with the slider.
• When
Vertical Ramps is selected:
– Select the desired color:
Red, Green, Blue or All.
– Select the vertical motion:
Still, Up or Down.
• When
Horizontal Ramps is selected:
– Select the desired color:
Red, Green, Blue or All.
– Select the horizontal motion:
Still, Left or Right.
• When
Cross Hatch is selected:
– Select the desired color:
Red, Green, Blue or All.
– Select the horizontal motion:
Still, Left or Right.
– Select the vertical motion:
Still, Up or Down.
– Adjust the
Pixel Width with the slider.
c. Press {Previous} to return to the Fiberlink Processing Menu.
8. To generate a test pattern from the Fiberlink receiver, press {Receiver} to display
the
Receiver Pattern Generation Menu.
a. In the Pattern Generation section, check the Enabled check box to
enable receiver test patterns.
