2. Hardware Orientation
DX-700 Front Panel
d) Value Box
The Value Box always displays the selected parameter’s current value, and the
box updates as you make adjustments. For
direct numeric entry, press the Value
Box to display a keypad, a sample of which is shown below:

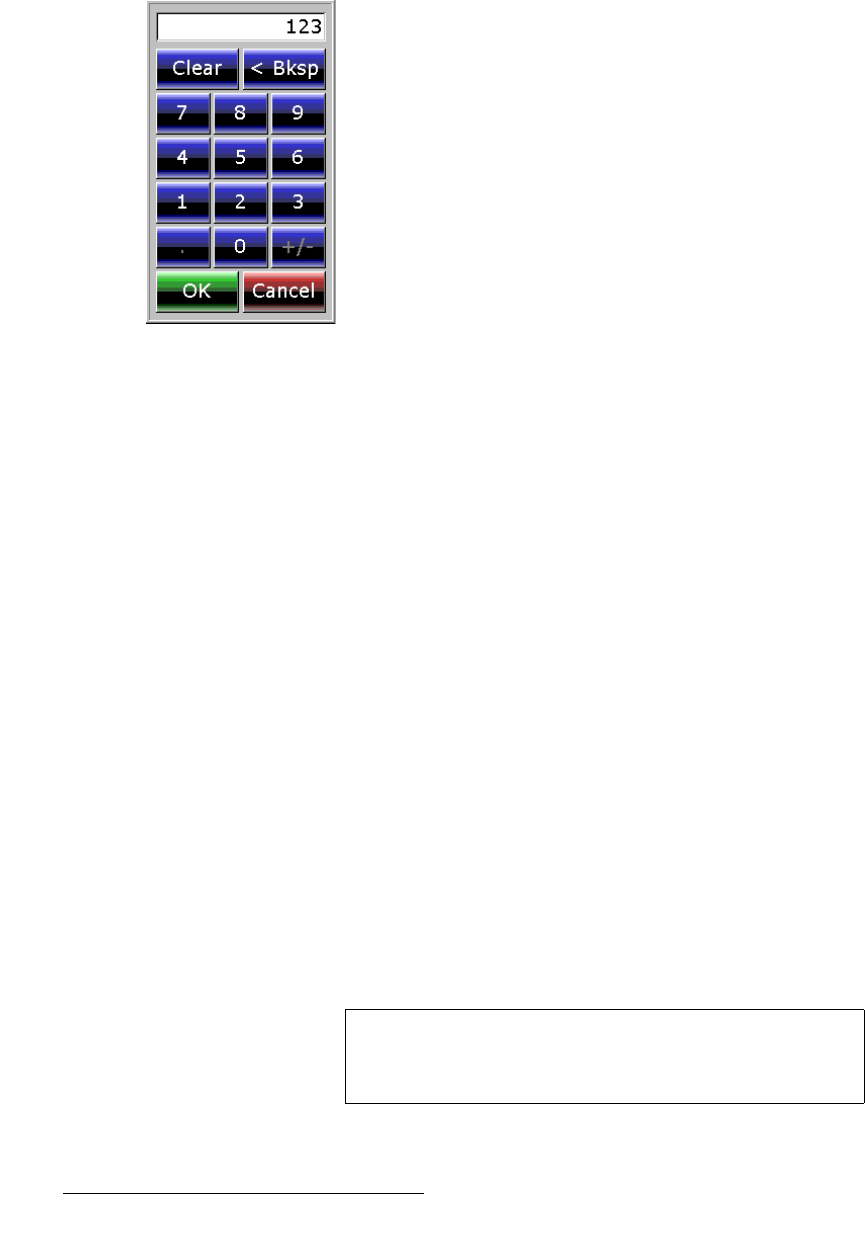

Figure 2-10. Sample keypad
~ Press the desired number buttons for the selected parameter. Entries
shift left in the register.
~ Press Clear to clear the entire register.
~ Press < Bksp to clear the last digit entered.
~ Press Cancel to cancel numeric entry, and clear the keypad from the
screen. The previous value is retained.
~ Press OK to accept the new value and clear the keypad.
qÉëí=m~ííÉêåë
The DX-700 includes several locations where internal test patterns can be enabled:
• In the Input Management Menu, select an input card, then select the {Window
Settings Tab}
. Next, press {Test Pattern} to display the Input Test Pattern
Menu
. These patterns are used to test a source within its assigned output region
on the canvas.
• In the DX-700 Management Menu, press {Monitor Setup} to display the Monitor
Output Menu
. Next, press {Test Pat} to display the Test Pattern Menu. These
patterns enable you to display a test pattern on the monitor (that is connected to
the System Module).
• In the DX-700 Management Menu, press {Test Patterns} to display the Output
Selection Menu. Next, select an output to display the Output Test Pattern
Menu
. This menu enables you to display a test pattern for the selected output (or
group of outputs).
Note
Within the Display Management Menu, a wall’s internal test
patterns can be enabled, but these patterns are not
generated by DX-700.
