4. Operation
Using the Input Wizard
This menu provides a simplified graphic of the selected input module.
~ If the system detects sync for an input, its button is active.
~ If the system does not detect sync, the button is inactive.
~ The system must detect HD sync on both HD/SDI inputs, in order for the
Dual SDI button to appear.
~ If you connect an input source to the input module at this point in the
wizard, press
{Refresh}. The system will search for sync, and re-draw
the screen with new (updated) button status.
Select the input that you wish to set up.
5. One of the following two actions occurs:
~ When the Dual SDI input is selected, the Dual SDI Data Mode Select
Menu appears. Please continue with step 6.
~ When either of the HD/SDI 1, HD/SDI 2, DVI, RGBHV or YPbPr inputs
are selected, the
Window Settings Menu appears. Please continue
with step
7.
6. When a Dual SDI input is selected, the Dual SDI Data Mode Select Menu
appears.

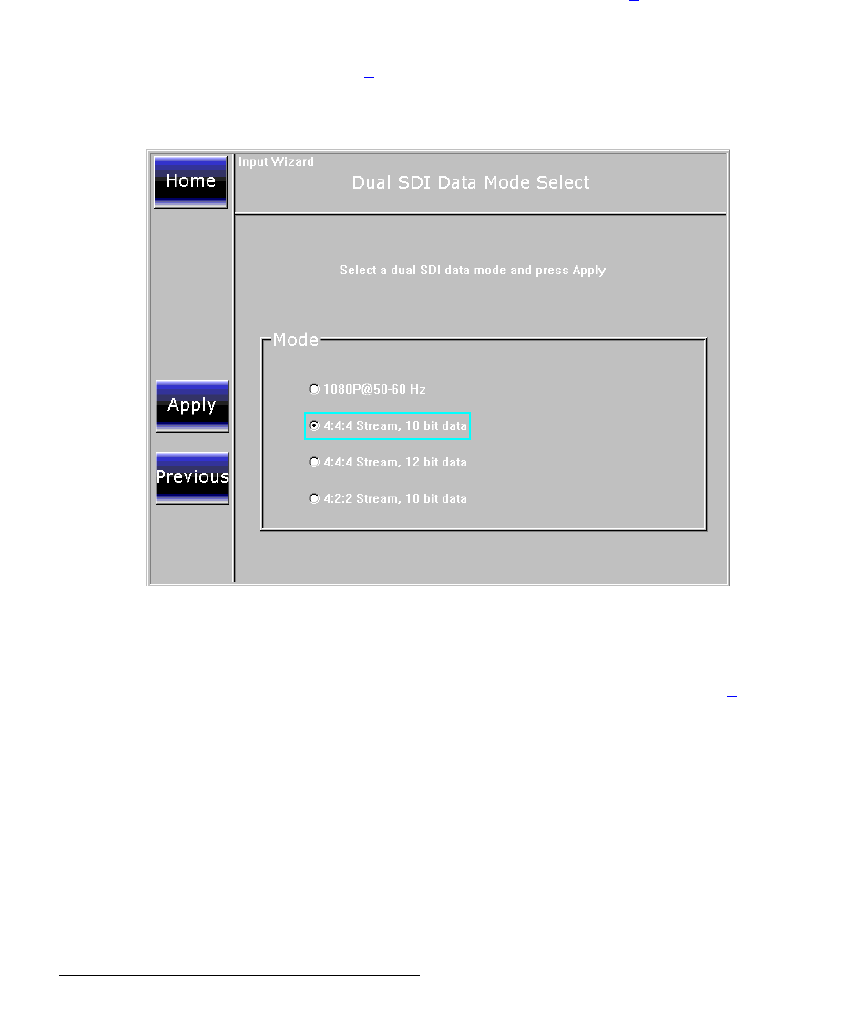

Figure 4-27. Input Wizard: Dual SDI Data Mode Menu (sample)
Select the exact type of dual SDI data that is connected and press {Apply} to
display the
Window Settings Menu. Please continue with step 7.
