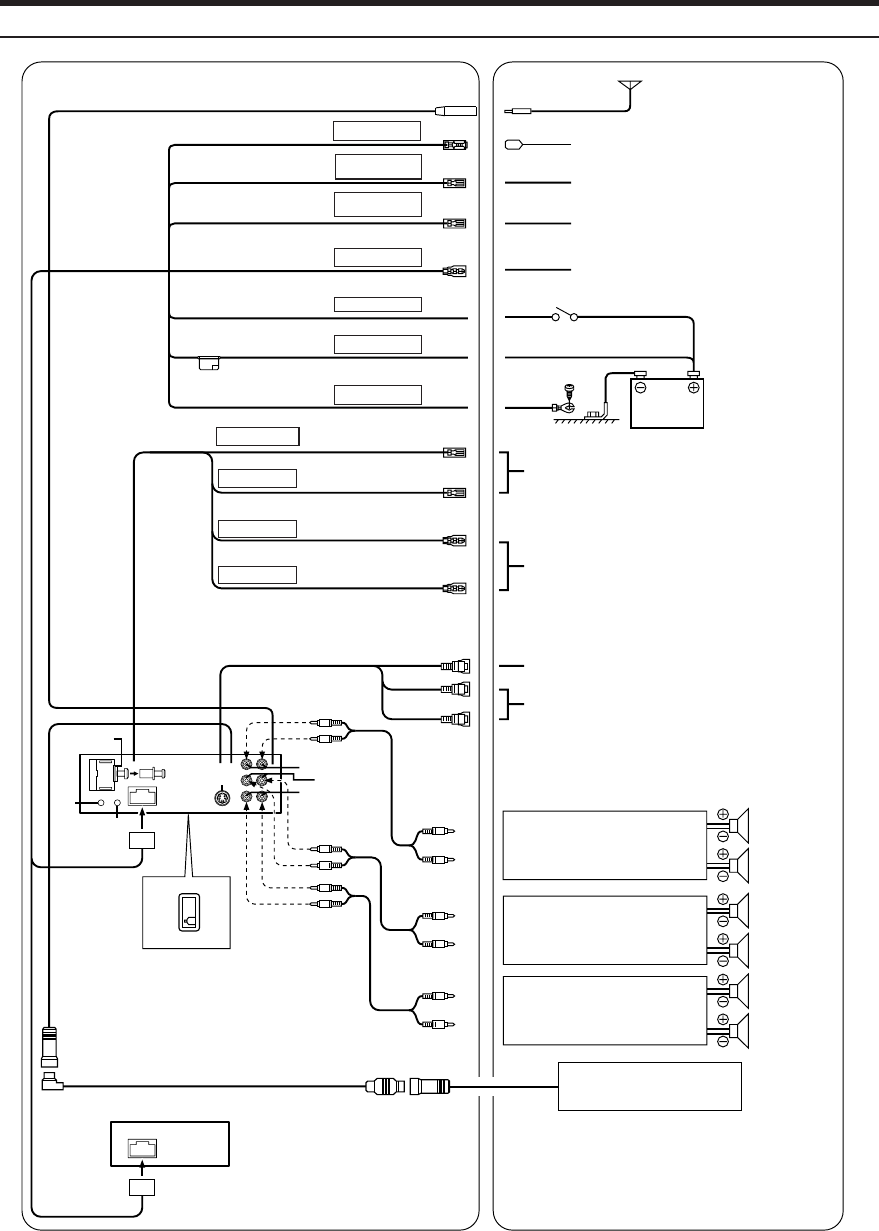

Connections
*
1
The label is attached on the bottom of the unit.
*
2
Caution about Power cable.
Use the power cable supplied with the unit.
Do not use a power cable that is not supplied with the unit.
Subwoofers
Amplifier
Amplifier
Amplifier
Rear Right
Rear Left
Front Right
Front Left
CD Changer
(Sold Separately)
Speakers
Power Supply Box
To Audio Input terminal (R, L)
ToVideo Input terminal
To remote output lead
To monitor control lead
To amplifier or equalizer
Ignition Key
To vehicle phone
Antenna
To power antenna
Battery
Blue/White
Pink
Red
Yellow
Black
REMOTE
TURN-ON
AUDIO
INTERRUPT IN
IGNITION
BATTERY
GND
To the instrument cluster illumination
lead
Orange ILLUMINATION
Blue
POWER ANT
(Yellow)
(White) L
(Red) R
M.CONT
REMOTE IN
(Front)
M.CONT
(Rear)
(Front)
REMOTE IN
(Rear)
(White/Pink)
(White/Pink)
(White/Brown)
(White/Brown)
*
