Alpine IXA-W407 Car Stereo System User Manual



11-EN
Adjusting the Audio
1
Press and hold SETUP for at least 2 seconds.
The SETUP selection screen is displayed.
2
Touch [ ] of Audio Setup.
The AUDIO SETUP screen appears.

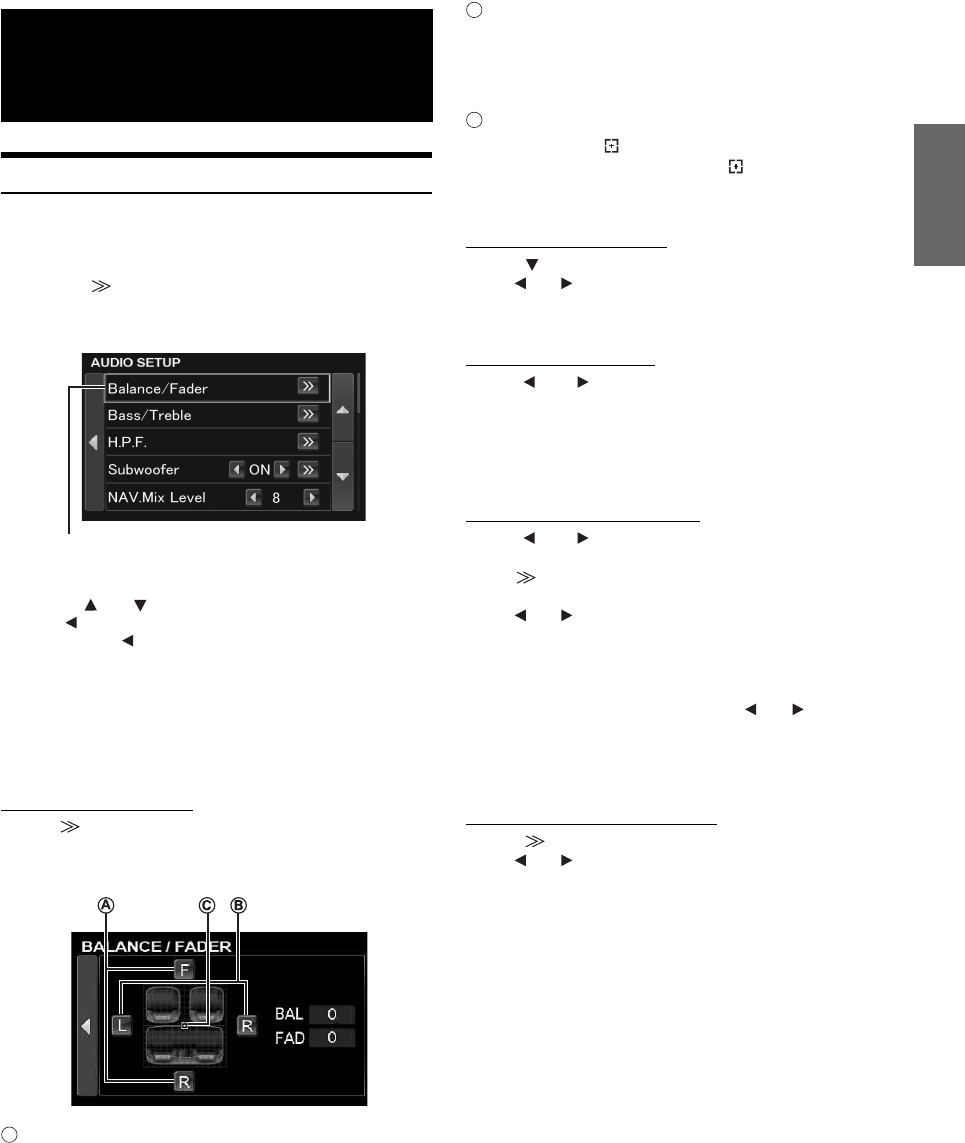

Display example for AUDIO SETUP Screen
* When a setting or search list is activated, a cursor appears.
Touching [ ] or [ ] will scroll the list one line at a time.
Touch [ ] to return to the previous list screen.
Touch and hold [ ] for at least 2 seconds will return to the main
source screen that was displayed before the setup operation was
started.
The A.Processor menu items will differ depending on which optional
audio processor is connected. The IMPRINT audio processor
(PXA-H100) or External Audio processors may be used. For details,
refer to
“IMPRINT Operation (Optional)” (page 31) or “External
Audio Processor (Optional)” (page 25).
Adjusting Balance/Fader
Touch [ ] of Balance/Fader, the adjusting screen of
Balance/Fader will be displayed.
Display example for BALANCE/FADER Screen
Adjusting the Fader
Touch [F] or [R] to adjust the volume of the front and
rear speakers.
Setting range: F15 to R15
If an IMPRINT audio processor (PXA-H100) is connected to this unit
and you have set the 2.2ch (3WAY)/4.2ch (FRONT/REAR/SUBW.)
switch of the IMPRINT audio processor (PXA-H100) to 2.2ch
(3WAY), you cannot adjust the Fader mode. For details, refer to the
Owner’s Manual of PXA-H100.
Adjusting the Balance
Touch [L] or [R] to adjust the sound volume of the left
and right speakers.
Setting range: L15 to R15
Adjusting the Balance/Fader Directly
Touch and move [ ] to a desired setting.
Or touch a desired setting range, and [ ] will move to that
location.
Touch [L] or [R] of Balance and [F] or [R] of Fader for fine-tuning.
Turning Defeat ON or OFF
Touch [ ] to display the Defeat adjusting screen.
Touch [ ] or [ ] of Defeat to set to ON or OFF.
If you set the defeat to ON, MX of an external audio processor is
turned OFF and EQ is returned to the initial setting.
Adjusting NAV. Mix Level
Touch [ ] or [ ] of NAV. Mix Level to adjust the volume
of navigation interruption.
Setting range: 0 to 15
This adjustment becomes available when NAV. Mix is turned ON in
“Setting the Navigation Interruption” (page 20).
Adjusting the Subwoofer Level
Touch [ ] or [ ] of Subwoofer to set the subwoofer
ON/OFF.
Touch [ ] to display the Subwoofer output adjusting screen
after setting the Subwoofer to ON.
Touch [ ] or [ ] to adjust the Subwoofer output.
Setting range: 0 to 15
When an external processor is connected, the display changes from
“Subwoofer” to the “SubW. LV” item. You can change the subwoofer
output level between 0 and 15 by touching [
] or [ ].
The Subwoofer System, Subwoofer Phase and Subwoofer Channel
may be set when an optional IMPRINT audio processor (PXA-H100)
is connected, Subwoofer is set to ON, and MultEQ OFF mode is
selected. For details, refer to
“Setting the Subwoofer” on page 35.
Adjusting H.P.F. (Highpass Filter)
Touch [ ] to display the H.P.F. adjusting screen.
Touch [ ] or [ ] of the desired speaker.
Setting range: OFF, 60 Hz, 80 Hz, 100 Hz
Select OFF when no adjustment is required.
When an external processor or IMPRINT audio processor
(PXA-H100) is connected, the display changes from “H.P.F.” to the
“A.Processor” item. For “A.Processor” operation, refer to
“External Audio Processor (Optional)” on page 25 or “IMPRINT
Operation (Optional)” on page 31.
Other Useful
Features
cursor*
A
B
BC
