Barco - RHDM-1701 - User manual 75
Full functionality description
IMPORTANT
:
When an error occurs, consult in the OSD menu the OSD submenu “Faults and warnings” to read the warning and/
or fault messages.
Calibration LED:
• Orange: The display unit is operating out of the calibrated range.
4.1.4 Control panel
4.1.4.1 Overview operation control panel

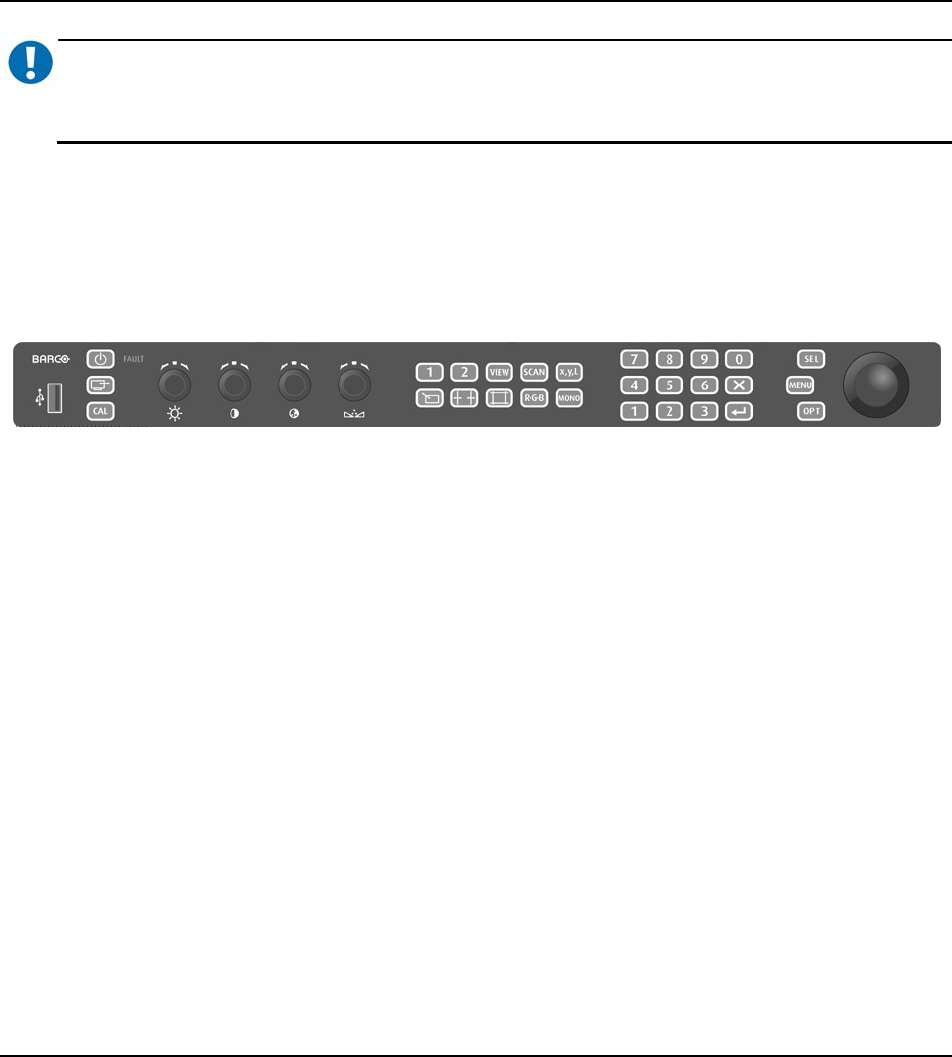

Figure 22: Drawing of the control panel
The control panel allows the user to change a wide variety of settings in a clear and easy way. To
apply the desired settings, the control panel is equipped with:
• a USB port
• press buttons
• press and rotary knobs
• a trackball
4.1.4.2 USB port
A USB storage device with the latest firmware will immediately be recognized and the display unit
will initiate a firmware upload automatically. It is also possible to connect a mouse as a replacement
of the trackball and the
(left button) and
(right button) buttons.
