Chapter 5: Configuration
Add And Edit Trigger Mapping
Psion Teklogix 8515 Vehicle-Mount Computer User Manual 89
Edit
Tapping this button brings up the Edit mapping dialog box, so that you can edit existing
trigger mappings.
Remove
Tapping this button removes an existing mapping.
OK
The OK button in the top right of the Manage Triggers screen saves all changes made. If the
cancel button X is tapped instead, or the [ESC] key is pressed, all changes made will
be discarded.
5.10.2 Add And Edit Trigger Mapping
This dialog box is used to add trigger mappings.

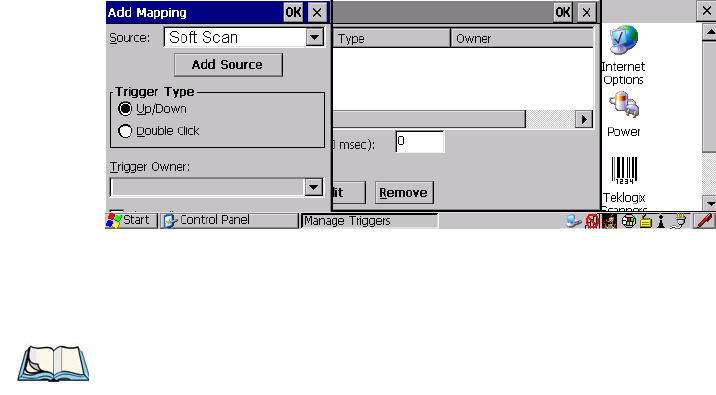

Figure 5.30 Add Mapping Menu
Source
This dropdown list allows you to specify the source of the trigger events, such as a keyboard
key [F1], for the Trigger Owner selected.
Add Source
Only existing trigger sources are shown in the Source combo-box. To add a new source to
this list, tap on the Add Source button. A dialog box pops up, allowing you to select the
keyboard key to use as a trigger source.
Note: It is possible to map the same source to different owners—for example, [F1]
can be mapped to both the Imager and RFID. If so, both devices/operations
will occur simultaneously. This is not recommended in most cases, especially
with devices that draw a great deal of current, such as imagers.
It is also possible to map different sources to the same owner.
