Chapter 6: Peripheral Devices & Accessories
Installation
132 Psion Teklogix 8515 Vehicle-Mount Computer User Manual
6.4.4 Installation

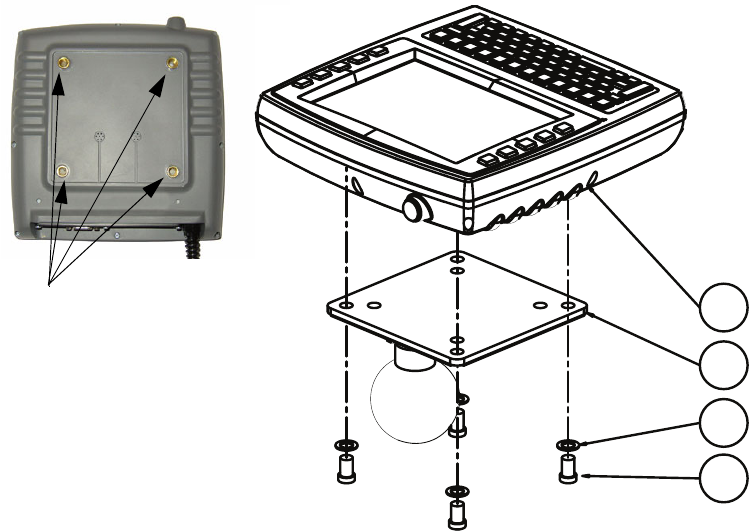

Figure 6.6 8515 Vehicle-Mount Computer With Mounting Bracket
1. Attaching the mounting bracket and RAM base to the vehicle-mount: The kit pro-
vides four screws and washers that are used to secure the mounting bracket to the
vehicle-mount. Figure 6.6 provides a diagram and a legend to help you attach the
mounting bracket and the RAM Vesa base to the vehicle-mount. To do this:
• Apply Loctite 243 to the screw threads (Note: Loctite is not supplied by Psion Tek-
logix). Match the four screw holes on the back of the 8515 with the appropriate pairs
of holes on the bracket and screw them together by placing the Screw (D) through the
Washer (C) and the RAM Vesa Base (B), and then affixing it to the 8515 (A).
• Torque to 26 in-lbs.
A
C
B
D
Back of 8515 showing
location of screw holes.
