Barco - RHDM-2301 - User manual 109
Full functionality description
•
Visible:
Setting to define the visibility mode for the UMD bar.
Disabled: the UMD bar is not visible at the bottom of the screen and not visible in OSD.
On screen: UMD is only visible in OSD.
•
UMD Controlled by:
Selects how the UMD bar is controlled:
Manual: settings of the UMD bar are defined by the settings in the manual settings sub-
menu.
GPI: settings of the UMD bar are defined by the settings in the GPI settings submenu and
controlled by a closed contact GPI. Please consult the addendum for the pinning of the GPI
tally control port.
•
Manual Settings:
Settings to define the UMD bar manually.
•
GPI Settings:
Settings that define the control of the UMD bar by the signal at the GPI Tally par-
allel port.

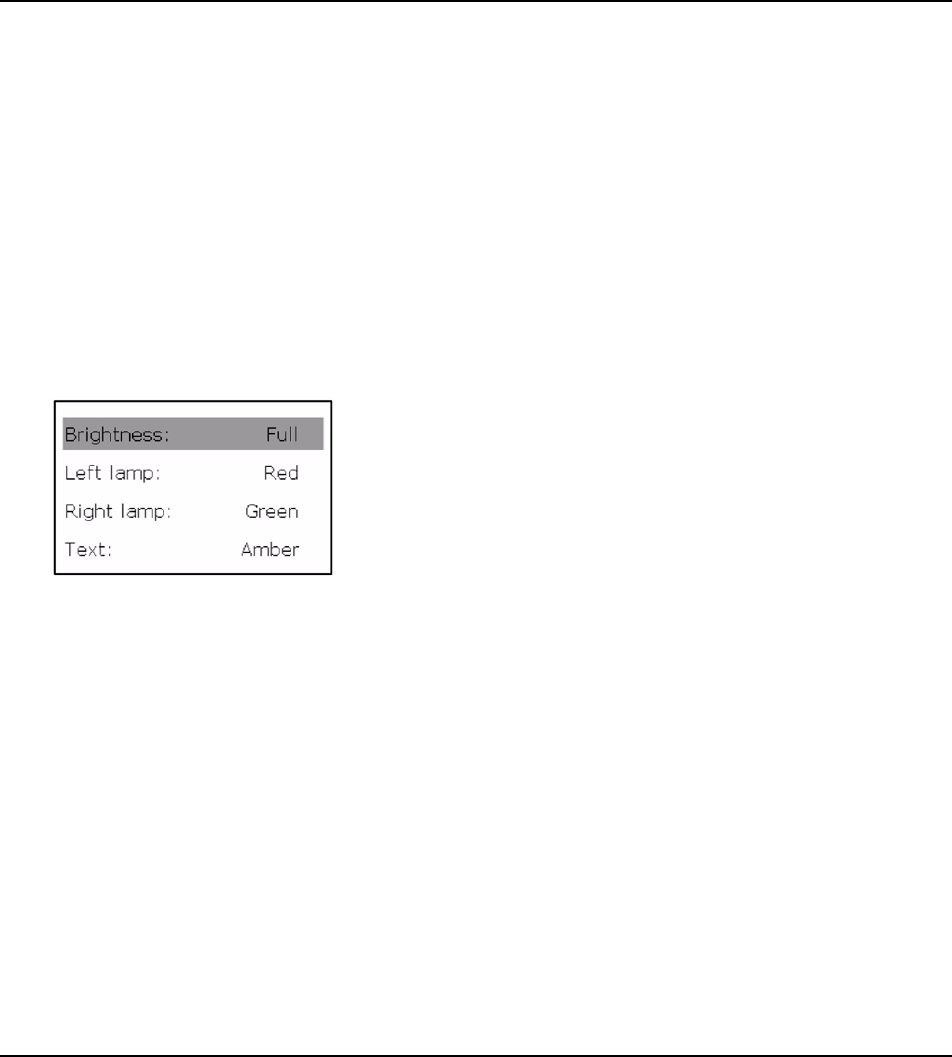

4.3.3.2 Manual settings
•
Brightness:
Sets the brightness to the specified value. The possible values are: Full, Half, 1/7,
Dark.
•
Left lamp:
Sets the color of the left lamp to the specified value. The possible values are: Red,
Green, Amber, Off
•
Right lamp:
Explanation of the setting are the same as for the Left lamp
•
Text:
Explanation of the setting are the same as for the Left lamp
