136 Barco - RHDM-2301 - User manual
Full functionality description
Color processing page
The color processing page allows the settings of several parameters that act on the input signal
selected by window 1 and window 2.
•
Background
: Same setting as the “Background
” image adjustment knob.
•
Gain
: Same setting as in the “Input settings” OSD menu.
•
Saturation
: Same setting as the “Saturation
#
” image adjustment knob.
•
Hue
: Same setting as the “Hue
$
” image adjustment knob.
•

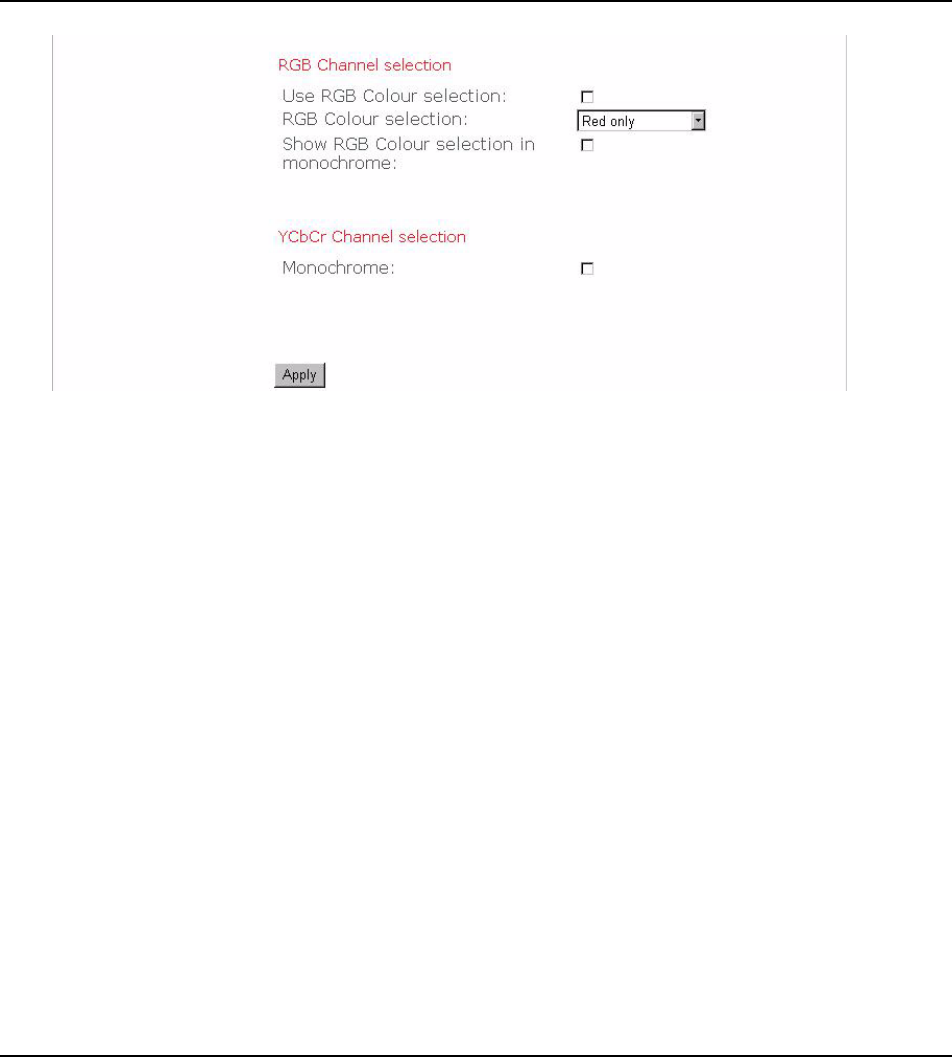

Use RGB Channel selection
: Activates the RGB color selection functionality. Same setting as in
the “Color channel selection” toolbox (
(
)).
•
RGB Color selection
: Select the color to be displayed. Same setting as in the “Color channel
selection” toolbox (
(
)).
•
Show RGB Color selection in monochrome
: Same setting as in the “Color channel selection”
toolbox.
•
YCbCr Channel selection – Monochrome:
Same setting as applied by pressing (
) the
button.
The current setting is shown when the page is opened or refreshed. Press “Apply” to send the
changes on the web page to the display unit.
