42 Barco - RHDM-2301 - User manual
How to
In the example shown in the figure above, window 1 is active and shows the signal applied to input
1 on the screen. Pressing (
)
will toggle between the available inputs (input 1 and input 2).
Pressing (
)
will select window 2. When window 2 is active, its selected input (in this example
this would be input 2) is shown on the screen.
NOTE
:
When no valid input is present for a certain input option, the screen will blank and show the “Invalid input“ icon.
When the display unit was powered off, this is the standard setting for both windows.
IMPORTANT
:
It is possible to select the same input signal for both windows.
The active window is highlighted in white in the status bar at the top of the screen. When the status
bar is hidden, move the track ball or press a button to show/reveal the status bar. The status bar
hides automatically after the timeout time set in the “OSD settings” menu in the OSD menu.

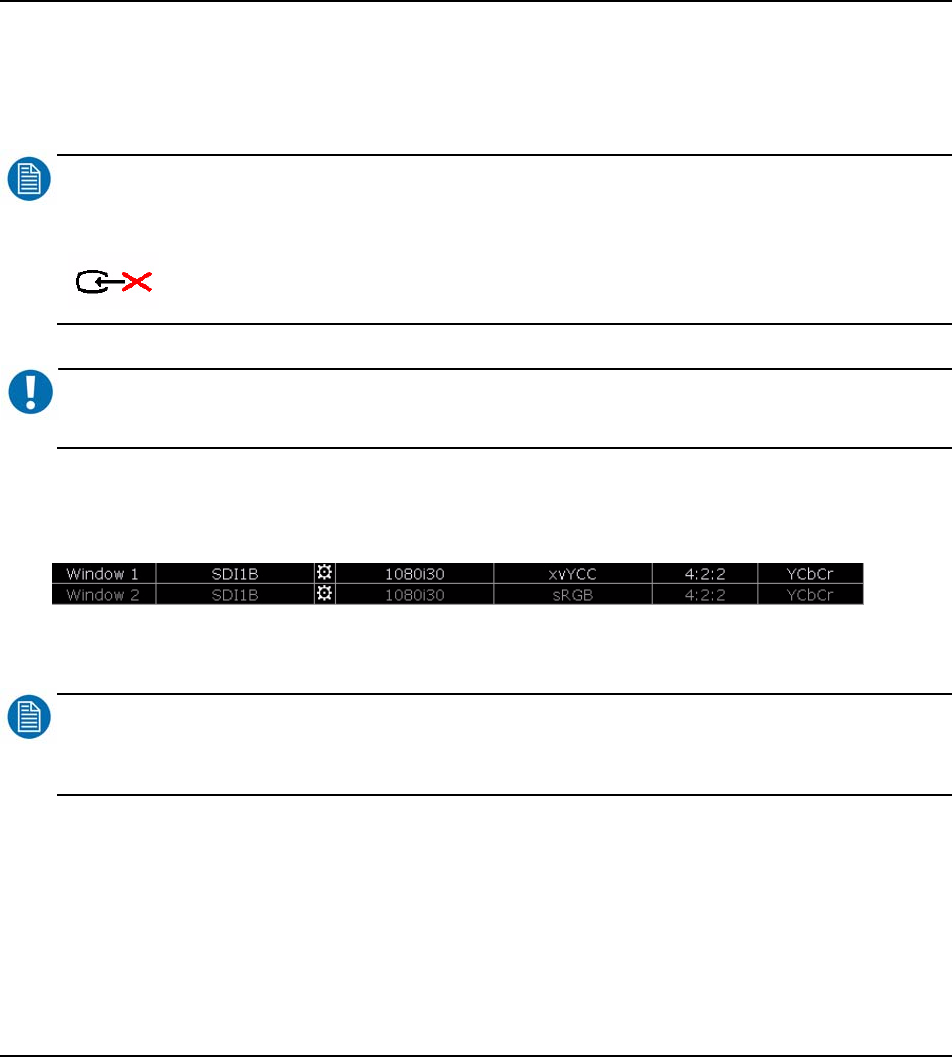

Figure 12: Zoom in of the status bar at the top of the screen
NOTE
:
Input settings are connected to the window. When input settings are changed for a specific window, they are stored
instantaneously.
