Barco - RHDM-2301 - User manual 197
Addendum

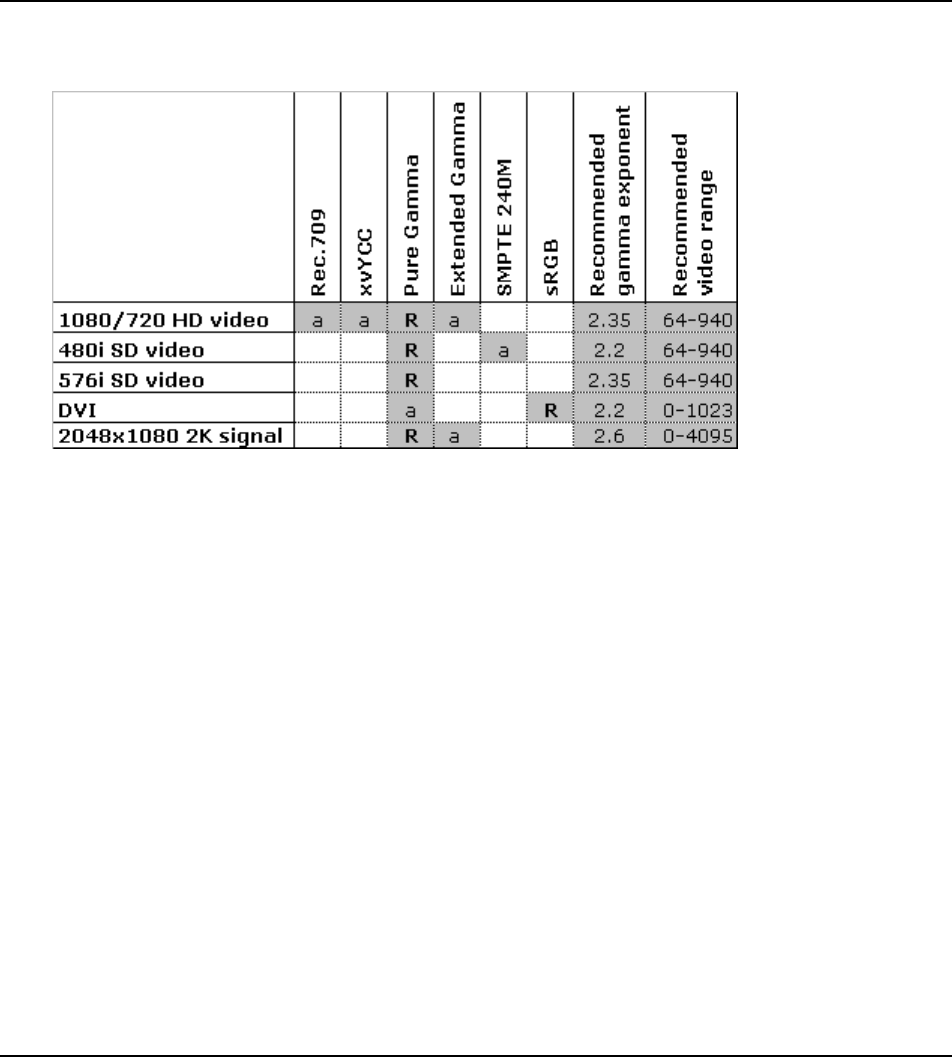

The following table summarizes the recommended settings. However the actual OETF choice is
ultimately with the user. “R” stands for recommended and “a” stands for alternative.
Table 8: OETF shapes
The OETF is a ‘window’ setting. A different OETF can be assigned to Window 1 and Window 2. Any
display input can be routed to each window.
7.5 Color spaces
The color space can be chosen independently of OETF.
Selectable white points are:
• D55 – 5500 K
• D65 – 6503 K (default)
• D75 – 7500 K
• D93 – 9300 K
• DCI – x=0.314, y=0.351
• Custom in [x, y]
The calibrated luminance (picture setting) is 100 cd/m2. This is the luminance of the maximum
allowed video level in the selected video range.
Selectable color spaces (primaries):
• Rec.709
