88 Barco - RHDM-2301 - User manual
Full functionality description
IMPORTANT
:
The Gamma settings apply to the selected window only. All signals processed by that window (
or
) will be
subjected to the gamma settings defined by the customer.
Function Description
Select input
Toggle between input selections for Window 1 (2).
Each input is instantly displayed on the screen. When
window 1 (2) is valid/active, pressing
(
) will ac-
tivate the other window 2 (1).

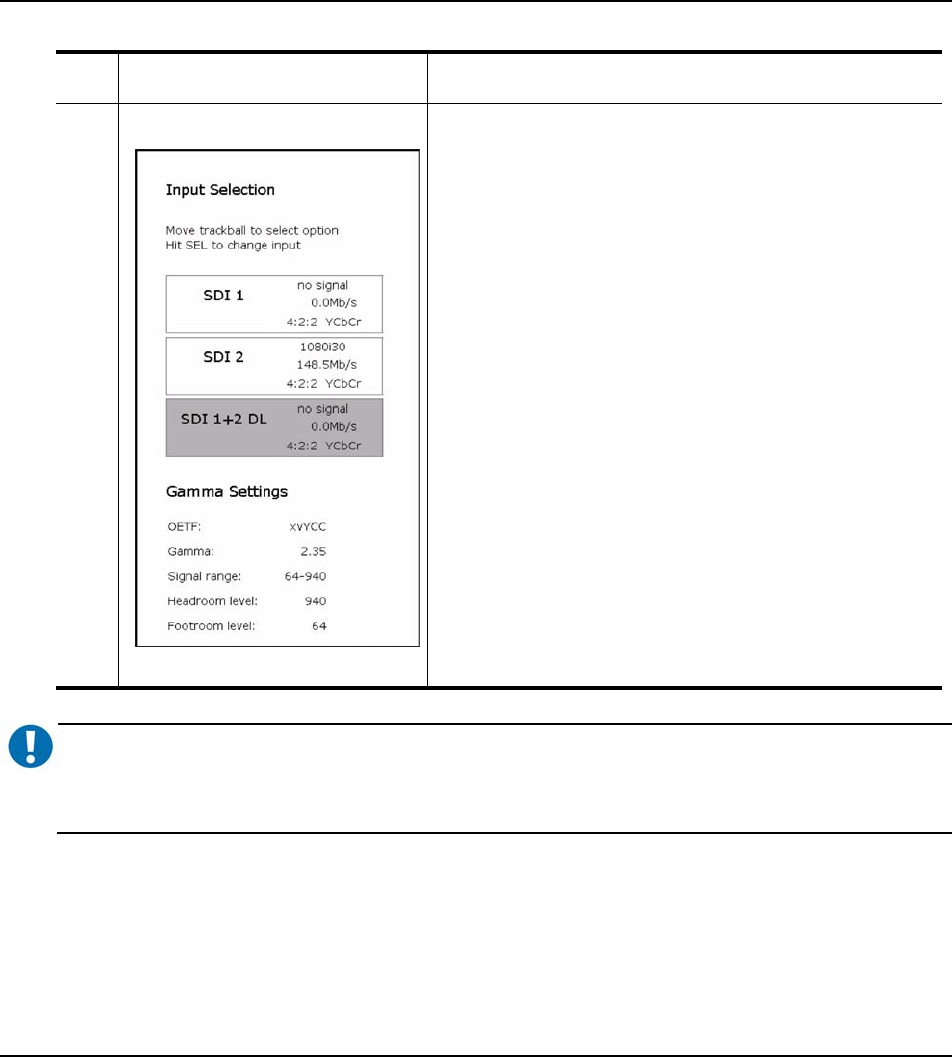

Input configuration toolbox appears.
The available
inputs for window 1 (2) are listed. Move with the track-
ball to select an input and press
to confirm the se-
lected input.
For all available input signals, the timing, color sub-sam-
pling and frequency is shown.
If 2 windows are shown next to each other, the left win-
dow is window 1.
The input signals applied to the display unit are automat-
ically detected and placed in the input selection list (
au-
tomatic input detection
).
Gamma Settings:
these settings apply to the selected
window only.
•
OETF:
Setting of the opto-electrical transfer function.
Possible settings are: xvYCC, Rec.709, Pure Gamma, Ex-
tended Gamma, SMPTE 240M or sRGB.
•
Gamma:
Custom setting of the gamma exponent.
•
Signal range:
Setting of the signal range. Possible
settings are 0-1023, 4-1019, 4-940, 54-1019 or 64-940.
•
Headroom level:
custom setting of the headroom lev-
el.
•
Footroom level:
custom setting of the footroom level.
