82 Barco - RHDM-2301 - User manual
Full functionality description
4.2 Settings control panel and toolbox
4.2.1 Overview buttons control panel
The display unit can be operated with the control panel. The control panel is divided in different
functional blocks. The functionality of the buttons in each block will be discussed in detail in the
following sections.

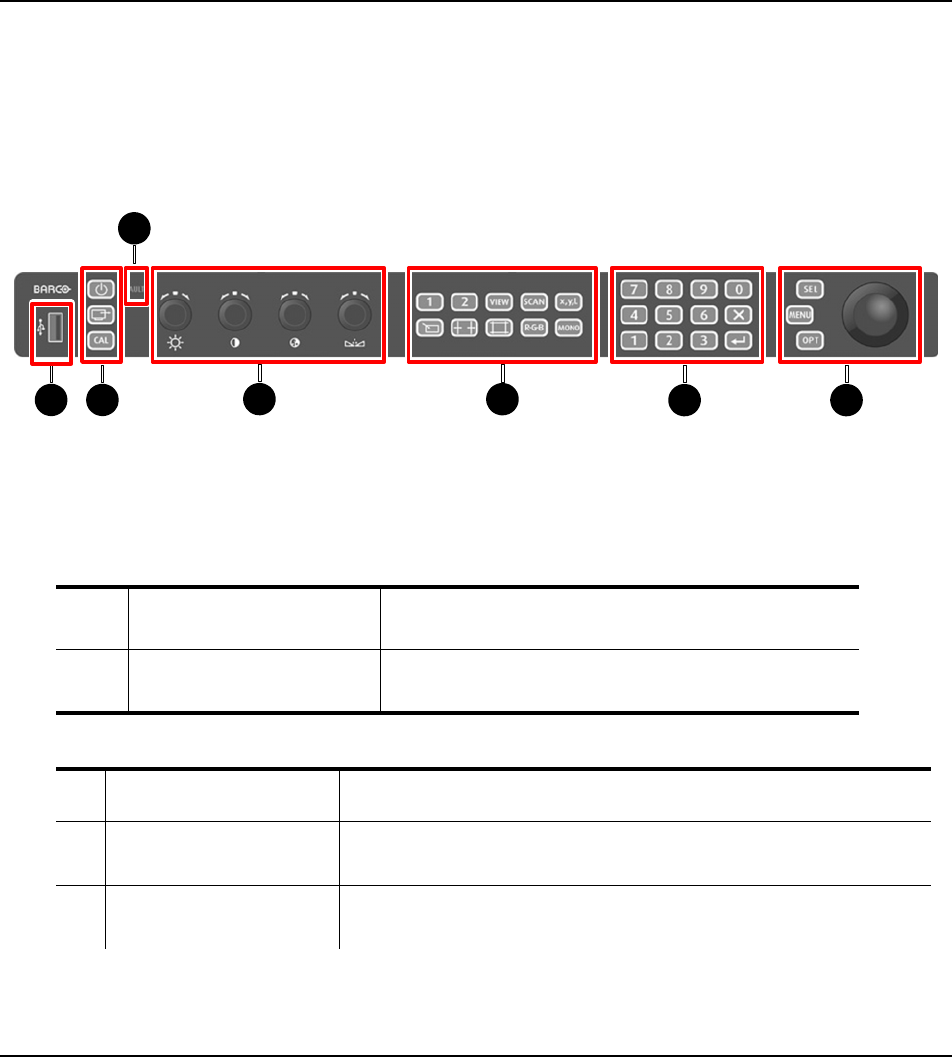

Figure 28: Control panel
The buttons on the control panel can perform an instantaneous operation or open a toolbox,
depending on whether the button is pressed short (
) or long (
).
The control panel consists of the following functions:
Short press Instantaneous effect
Long press (press longer
than 2 seconds)
Open a toolbox with advanced settings
Block Functionality
1USB connector
Access to the display unit to upload new display firmware in an
automated way.
2 Control buttons
Allows the operator to switch the display unit on/off and set the
display unit to preset and calibrated values.
1
2
4
6
5
3
7
