Barco - RHDM-2301 - User manual 125
Full functionality description
4.3.7.3 Store presets

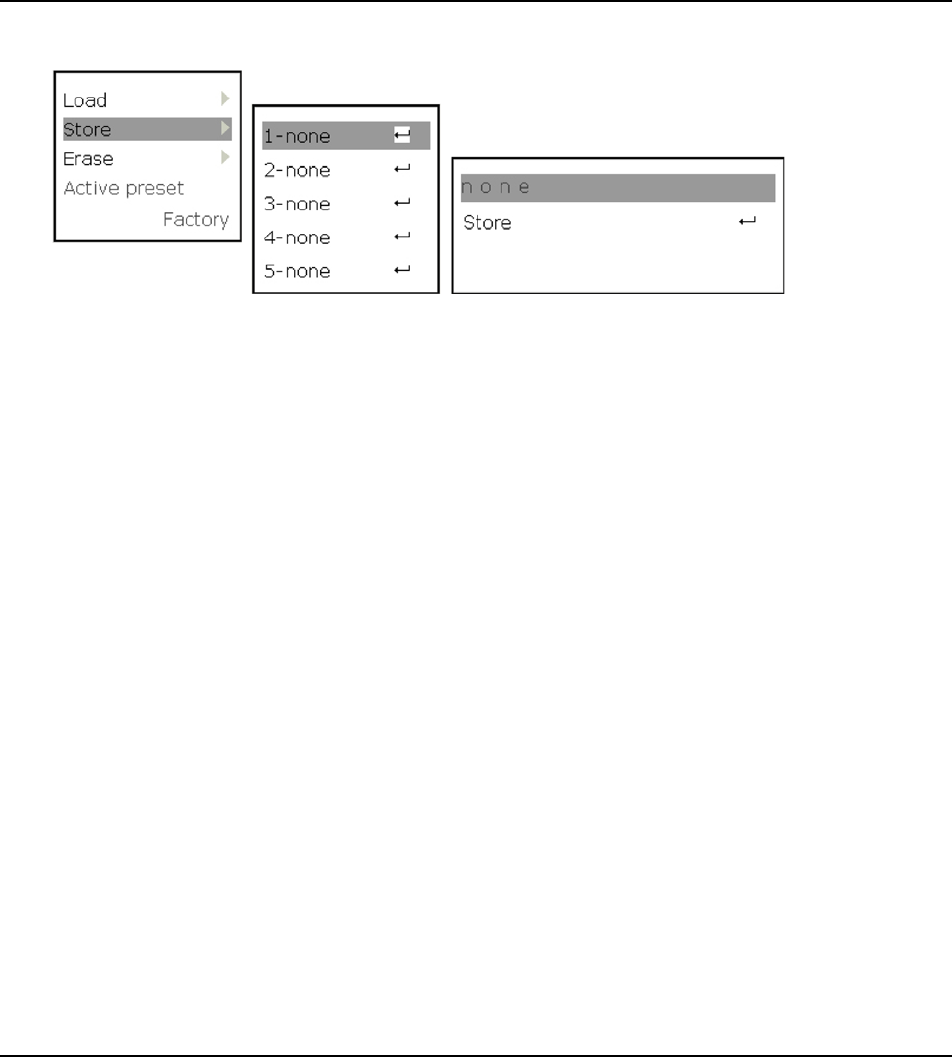

The store submenu is used to store the current user settings into a preset.
• The store submenu has 5 entries, numbered 1 to 5 corresponding with preset 1...5. Next to the
number is the name of preset which represents the filename of the preset file.
Upon selecting one of the 5 entries another submenu is opened.
This submenu has a field to optionally change the name of the preset to be stored. Secondly it has
the command to store the preset.
•
None:
Note that changing the name is optional, if you don't change it, you will be using the orig-
inal name (none).
•
Store:
Pressing
or
on the Store command stores the current settings to the preset
with the giving name.
When the store is finished, feedback is provided to the user at the bottom of the submenu. In the
example above the feedback/status is >blank> Possible values are:
'Preset stored’: Indicates the preset was stored.
'Store failed': The storing failed.
<blank>: The feedback/status field is by default blank and is also again blank after 15s.
This means that its information is only shown for about 15s.
