Video signal processing
5.4 Effective gamma
The Rec.709 encoding equation assumes a linear tail and a power function with an exponent 0.45.
However, because of the linear offset and scaling, it is not correct to state that the Rec.709
encoding equation is described by a gamma of 0.45. The Rec.709 encoding equation is best fitted
with a pure power function with an exponent 0.52 (see figure below). We call this “best fit” the
“
effective gamma
”
.

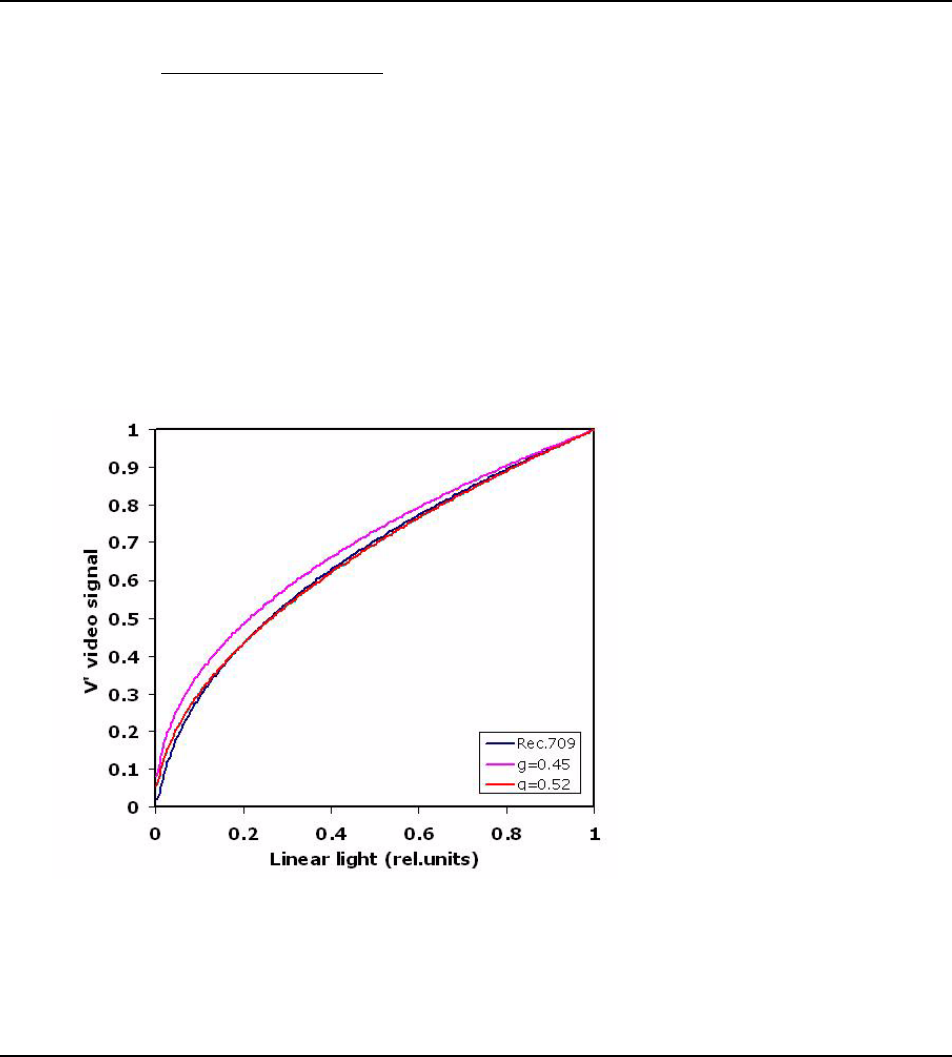

Figure 55: The Rec.709 encoding equation fitted with a power function
⎪
⎪
⎩
⎪
⎪
⎨
⎧
≤≤
<≤−
−<≤−
−
−−
−
=
33.1018.0
018.0004.0
004.025.0
099.0099.1
5.4
4
099.0)4(099.1
'
45.0
45.0
1361
L
L
L
L
L
L
V
